SBS Auto-Balance System　SBS AE Sensor System

Accretech would like to introduce systems that meet a variety of needs, such as stabilizing the grinding accuracy required for grinders and shortening cycle time. Although parameters such as grinding wheel dimensions, shape, grit size, porosity and grade are important for high-speed grinding wheels to operate with high accuracy, it is also important to accurately and swiftly detect contact between the grinding wheel and the work-piece. Our automatic grinding wheel balancing and machine monitoring AE (Acoustic Emission) sensor systems solve typical customer problems such as “ It takes time to replace the grinding wheel, ” “ The reproducibility of grinding accuracy after wheel replacement is low, “ and “ I want to correctly detect gaps and crash conditions.”

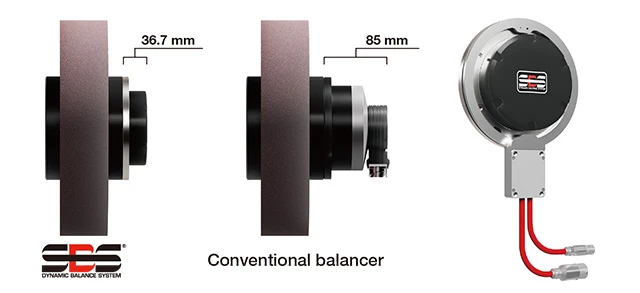

The balancer is only 36.7 mm. We’ve achieved a far slimmer design compared to previous balancer designs.
The new slim model allows it to fit in narrow places where installation was previously difficult.

By adopting a ring-shaped sender and the new low profile ring power balance head, the total thickness has been reduced to under 40 mm.
The new slim model allows it to fit in narrow places where installation was previously difficult.

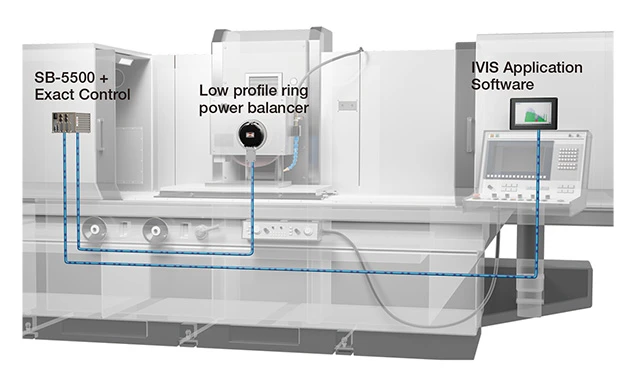

We offer low profile ring power balancers with a built-in AE sensor.

[Want to balance the grinding wheel easily]

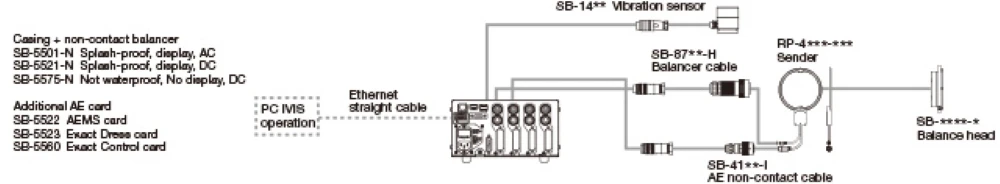

SB-5501-N + Vibration sensor 6 m + Balancer cable 6 m + Low profile ring power balance head 600 gcm + Sender

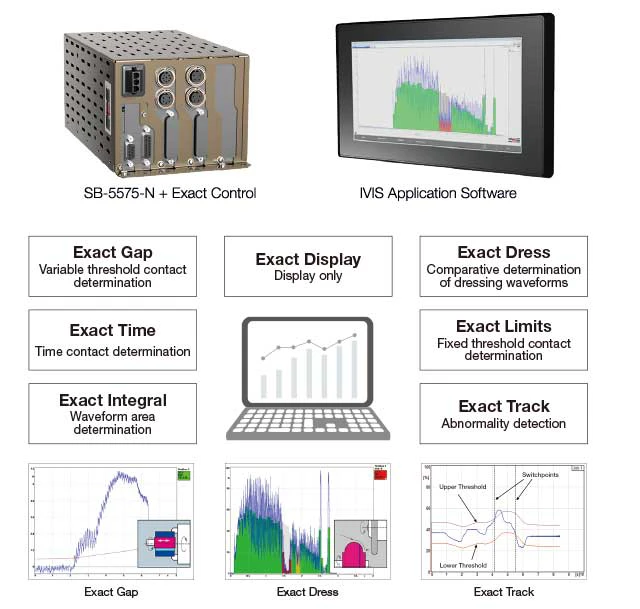

[Want overall machine monitoring based on more sophisticated judgment conditions, while achieving balancing]
SB-5501-N + SB-5560 + Vibration sensor 6 m + Balancer cable 6 m + AE non-contact sensor cable 6 m + Low profile ring power balance head 600 gcm (with AE) + Sender(with AE) + I/O cable 6 m + I/O conversion adaptor for Exact Control
