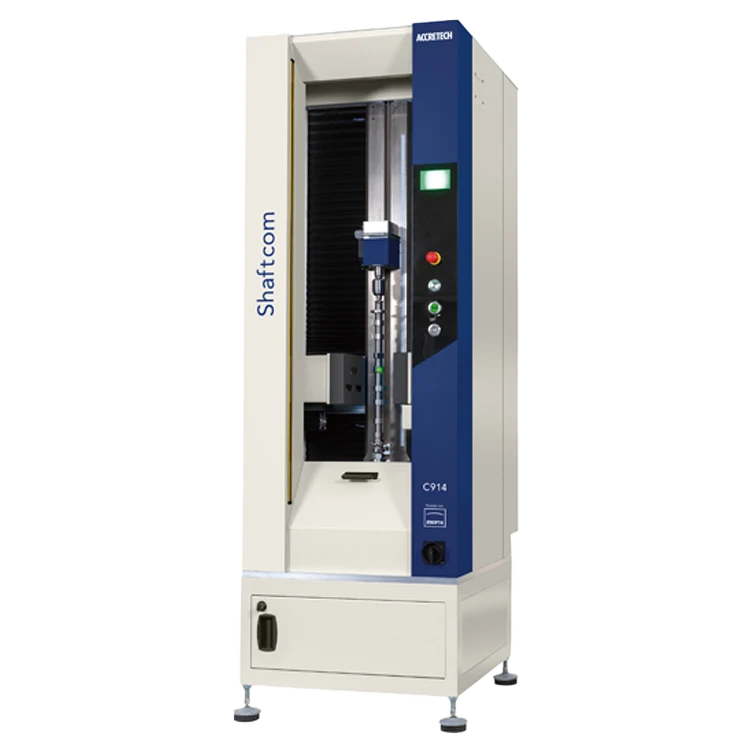

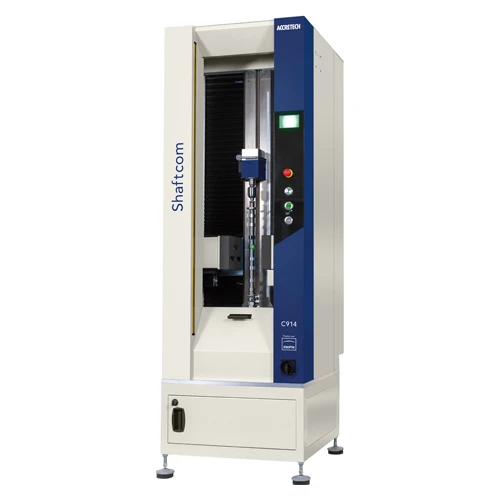

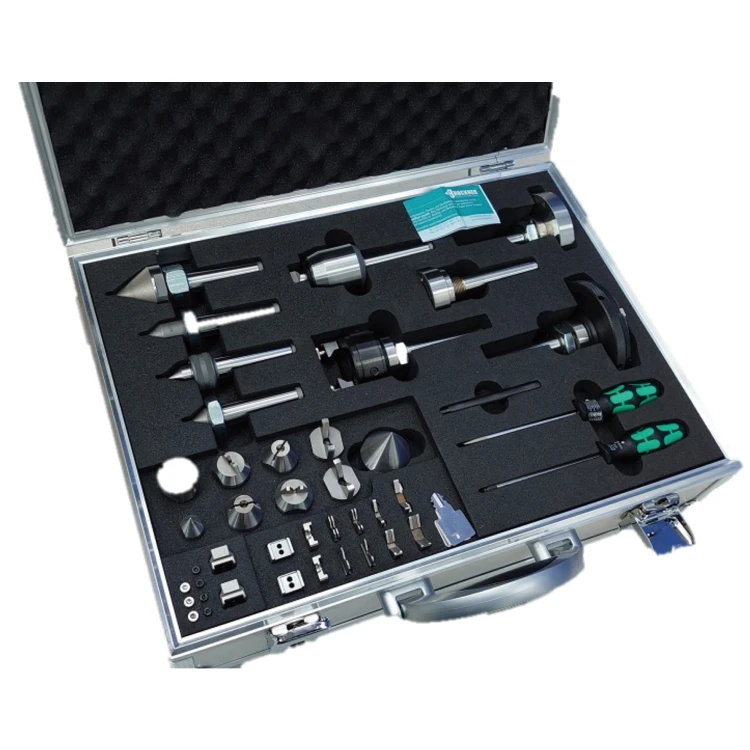

Shaftcom C
Optical shaft measuring system that achieves high speed and high accuracy measurement
and can be automated on the shop floor
The size tolerance and geometric tolerance of a shaft-shaped workpiece can be evaluated in a short time
Features
JENOPTIK Industrial Metrology Germany GmbH (hereinafter JENOPTIK), a global manufacturer of optical equipment, has partnered with ACCRETECH on the sales and maintenance services of shaft measuring machines in Japan.ACCRETECH has newly added these machines to its product lineup to be sold under the Shaftcom brand name. With the Shaftcom, quality control of rotationally symmetrical components is performed during ongoing production. The integrated camera systems with telecentric light optically measure dimensions and contours either randomly or 100% on every workpiece from the production line.
Both overwhelming measuring speed and highly accurate / high-resolution measurement

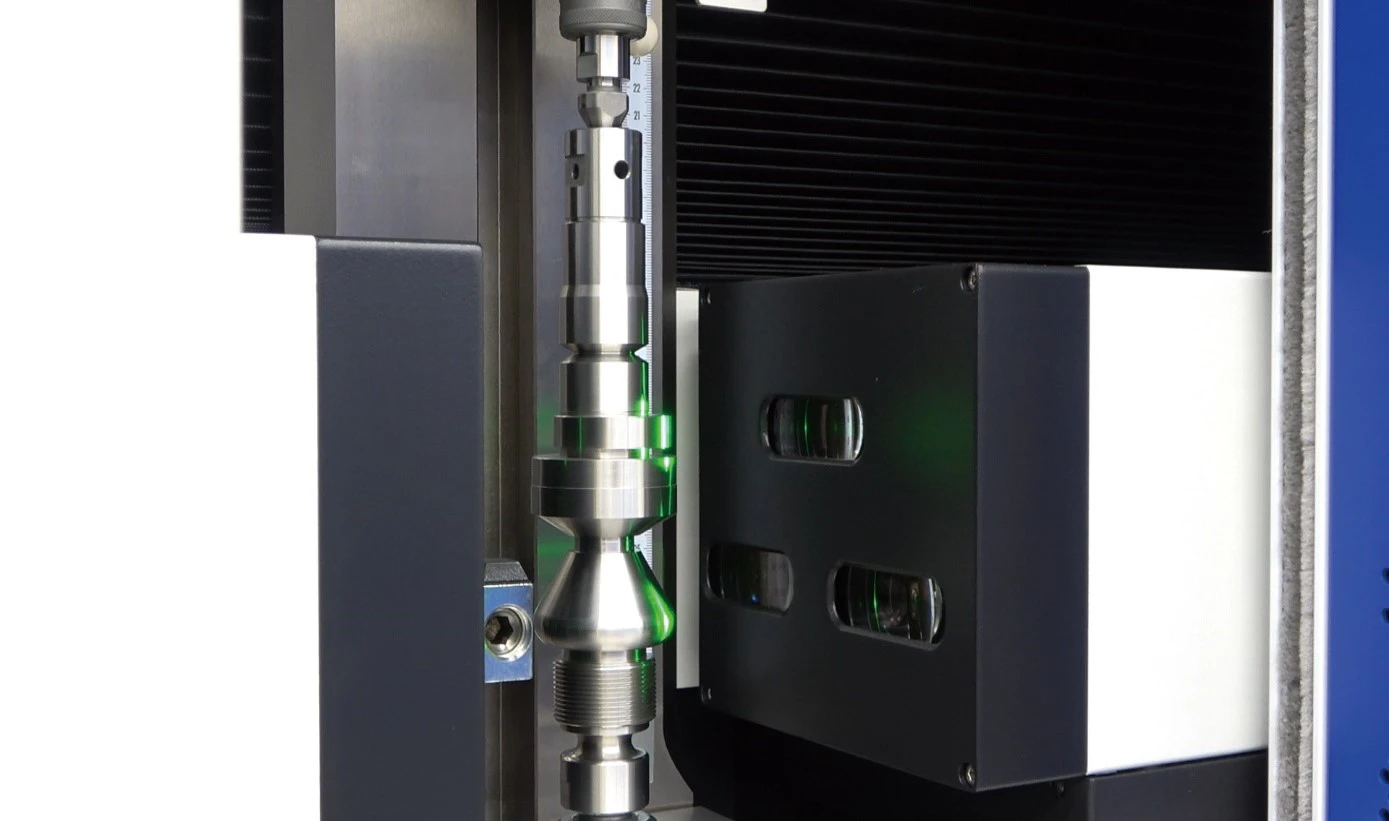

Line scan camera enables high-speed measurement
7500 pixel line sensor that realizes high accuracy and high resolution
Automatic calibration of the optical sensor before the measurement program runs
Accuracy with optical sensor
Accuracy MPE:
Diameter (1.0 + D/200) μm
Length (2.6 + L/200) μm

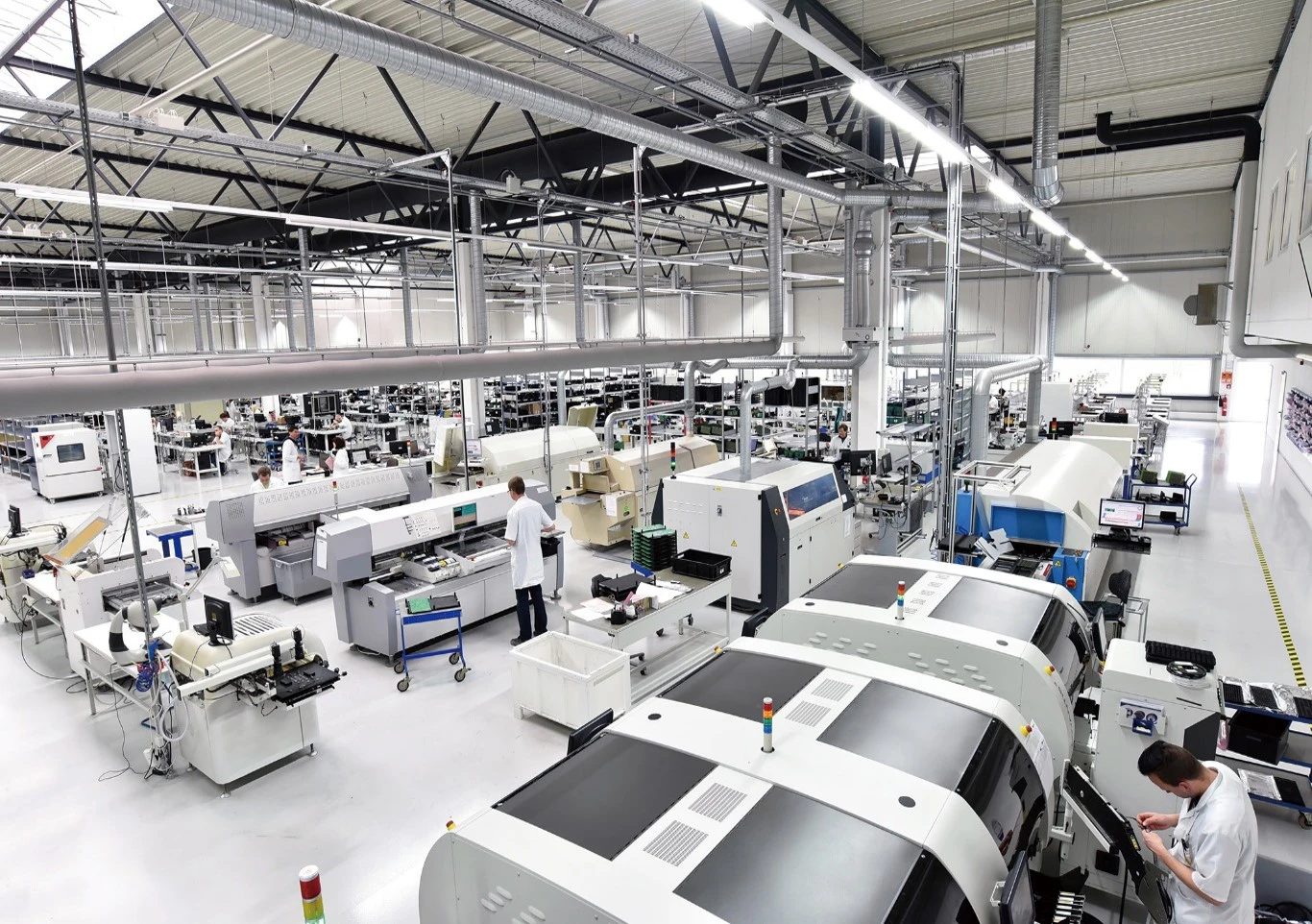

Excellent environmental resistance for installation on the shopfloor
Camera with IP52 protection against luquids and dust
Monitoring system that automatically detects dirt on the camera
Sealing cover protects the headstock and built-in master from oil, dust, and dirt
PC built in the main unit
3-layer structure and ventilation system protect the measuring part from the heat generated inside the measuring system
Automatic correction of the environmental temperature before the measurement program runs
Intuitive measurement and analysis of diverse characteristics
Characteristics such as size tolerance, geometric tolerance, and screw shape can be evaluated in a single measurement

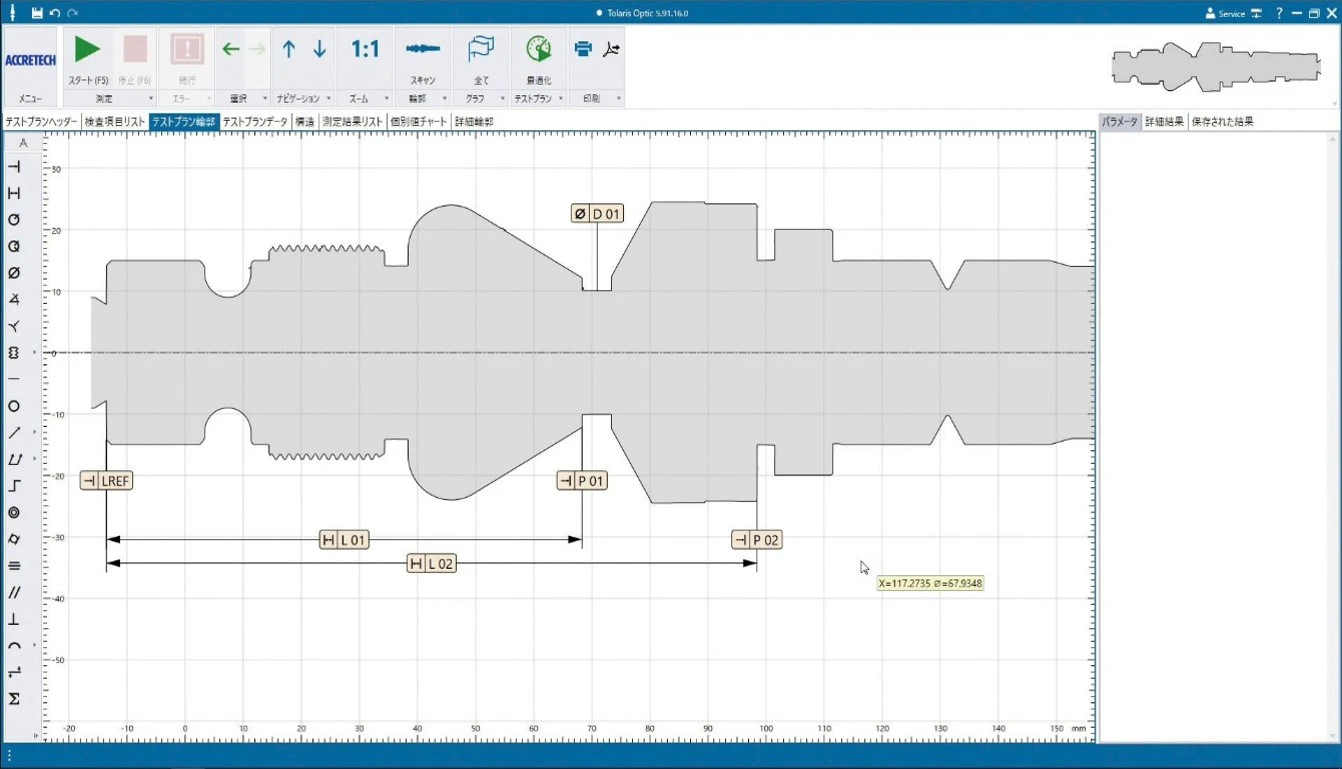

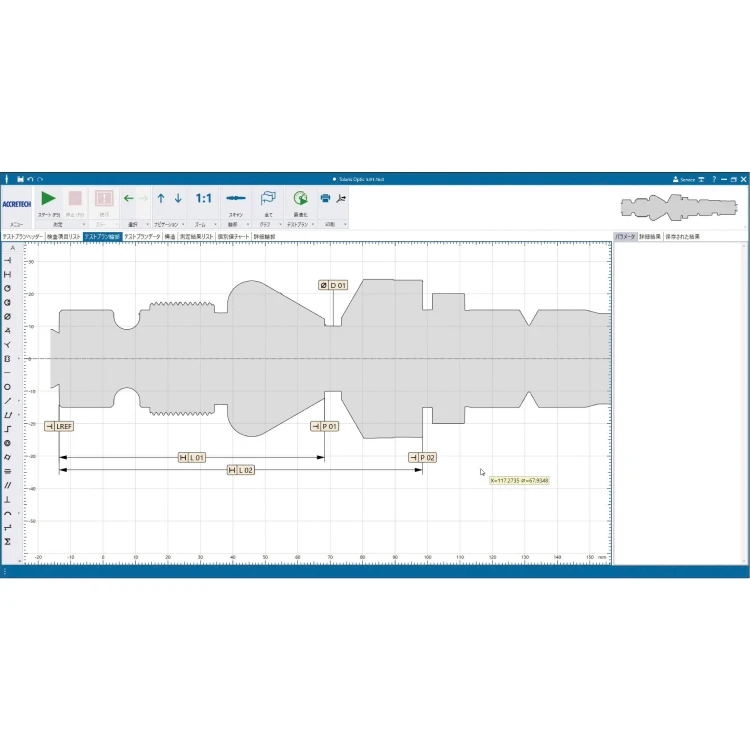

Tolaris Optic, measurement and analysis software easy for anyone to operate

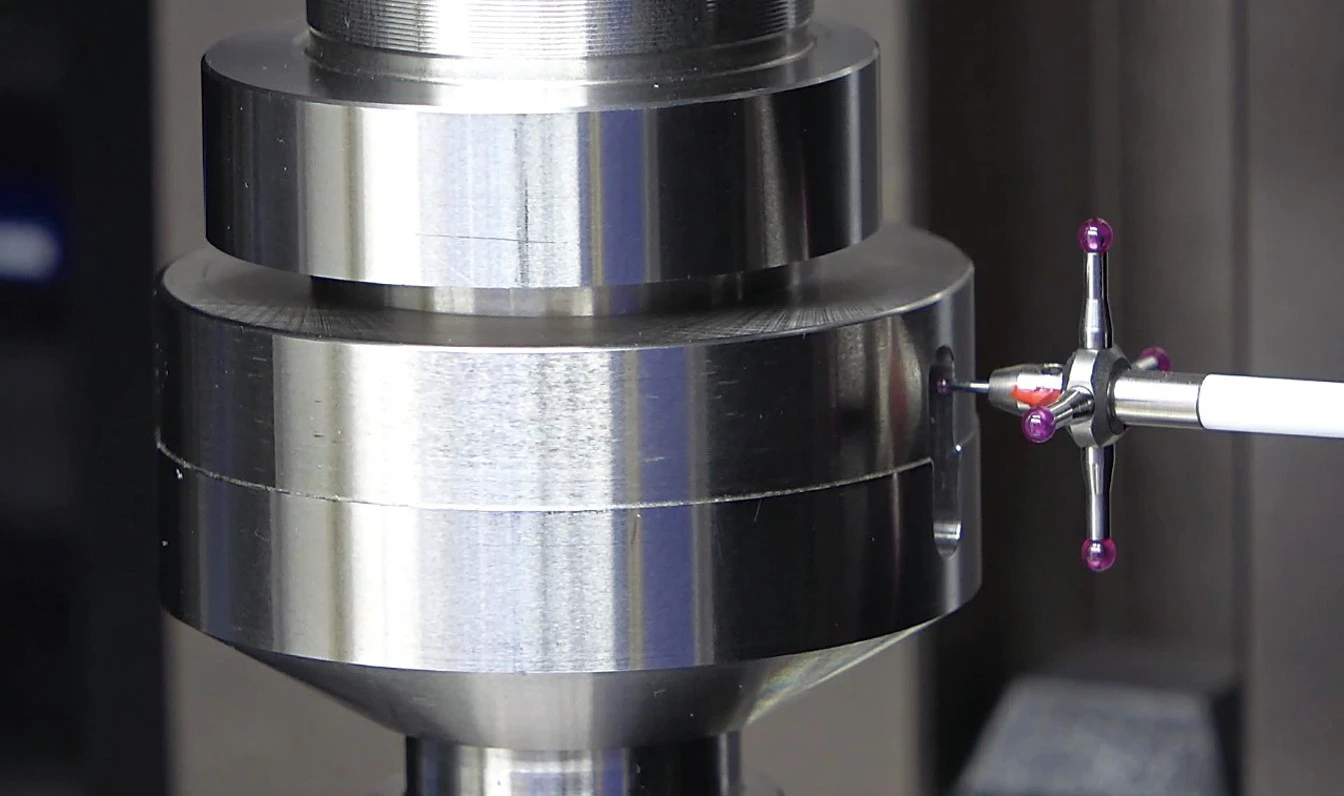

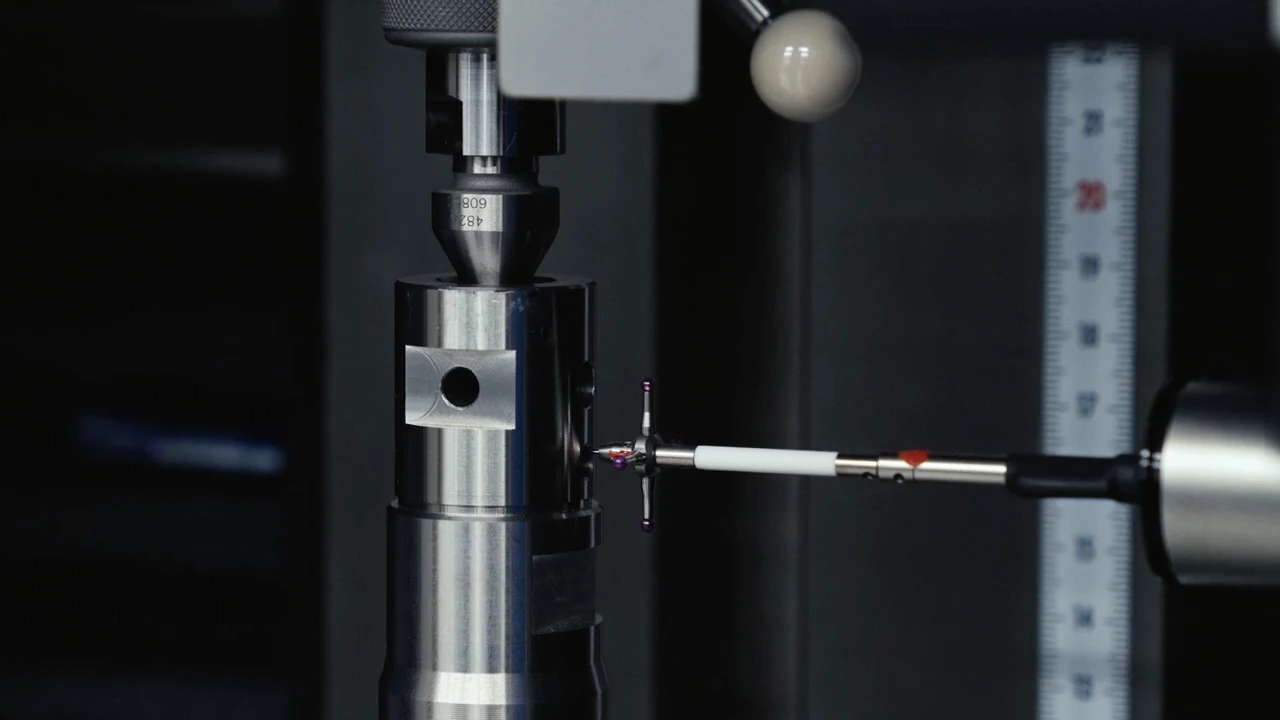

The tactile probe can accurately measure the shape of keyways, holes, and other shaded objects that an optical sensor cannot measure, as well as the run-out in the axial direction (for Shaftcom C with T3D only)
Accuracy with tactile probe
Accuracy MPE:
Diameter (3.7 + D/200) μm
Length (3.6 + L/200) μm
