RONDCOM NEX 200/300 DX2/SD2
Roundness and cylindrical profile measuring instruments helping to accelerate labor saving
Variation
Features
Hassle-free measurement of any workpiece thanks to a rich lineup,
myriad of functions, and excellent labor-saving options
Since its release in 2014, ACCRETECH's RONDCOM NEX series has been constantly evolving to meet the needs of the market. The RONDCOM NEX are state-of-the-art roundness and cylindrical profile measuring instruments that can be equipped with two labor-saving options while inheriting the original strengths of the series, namely, a rich lineup, myriad of measurement functions, and excellent maintainability. Equipped with the labor-saving options of "AFD (Automatic Force adjustment Detector)" and "XY-Axis Automatic Stage," these machines make it possible to automate processes that were conventionally performed manually by an operator, thus greatly improving measurement efficiency.

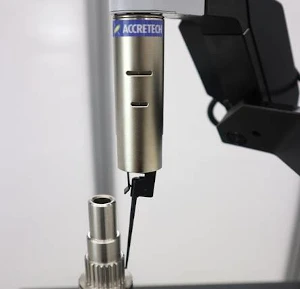

Labor-saving option: AFD(Automatic Force adjustment Detector)
The AFD (Automatic Force adjustment Detector) allows automatic adjustment of measurement direction and force in the software. As such, it is possible to automatically measure the outer and inner diameters of a workpiece. When measuring notched workpieces, the front travel can be automatically adjusted to prevent the stylus from dropping.
Dramatically Improving Efficiency of Measurement of multiple workpieces and multiple locations

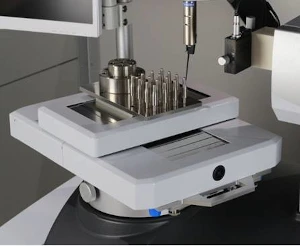

Labor-saving option: XY-Axis Automatic Stage
When measuring a large number of workpieces, a typical table rotation roundness and cylindrical profile measuring instrument requires the workpiece to be replaced multiple times between individual measurements. However, the RONDCOM NEX series features a common optional XY-Axis Automatic Stage, allowing many workpieces on the stage to be measured at once without requiring any special setup. This is a labor-saving option that minimizes operator effort and reduces measurement takt time.
Lineup

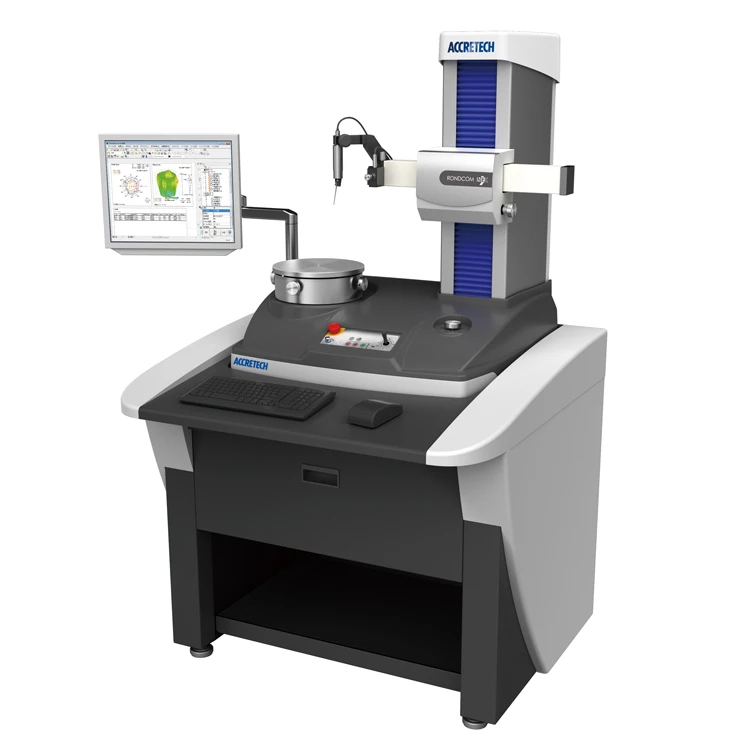

Standard model
RONDCOM NEX
Max. loading weight: 30kg
Max. measuring height: 300/500 mm
Alignment: Manual/CNC
Changing the posture of the detector: Manual/CNC
Types: Measuring unit and data processor integrated(DX2)
/Measuring unit and data processor separated(SD2)
Alignment can be upgraded from manual to CNC later
Model for measuring heavy workpieces
RONDCOM NEX α
Max. loading weight: 60kg
Max. measuring height: 300/500/900* mm *Only SD2 type
Alignment: Manual/CNC
Changing the posture of the detector: Manual/CNC
Types: Measuring unit and data processor integrated(DX2)
/Measuring unit and data processor separated(SD2)
