HANDYSURF+
New HANDYSURF reborn with sophisticated design
Portable surface texture measuring instrument for global use responding to diverse needs
Variation
Feature
Display changeable in 20 languages
Multi-language support available worldwide
20 Asian and European languages including Japanese, English and German are provided as standard. Display language can be easily changed by operating the buttons.
High resolution with wide measuring range
No need to set up measuring range
The previous HANDYSURF required setting of a narrow measuring range when measuring with a high resolution, but HANDYSURF+ does not have such a requirement.

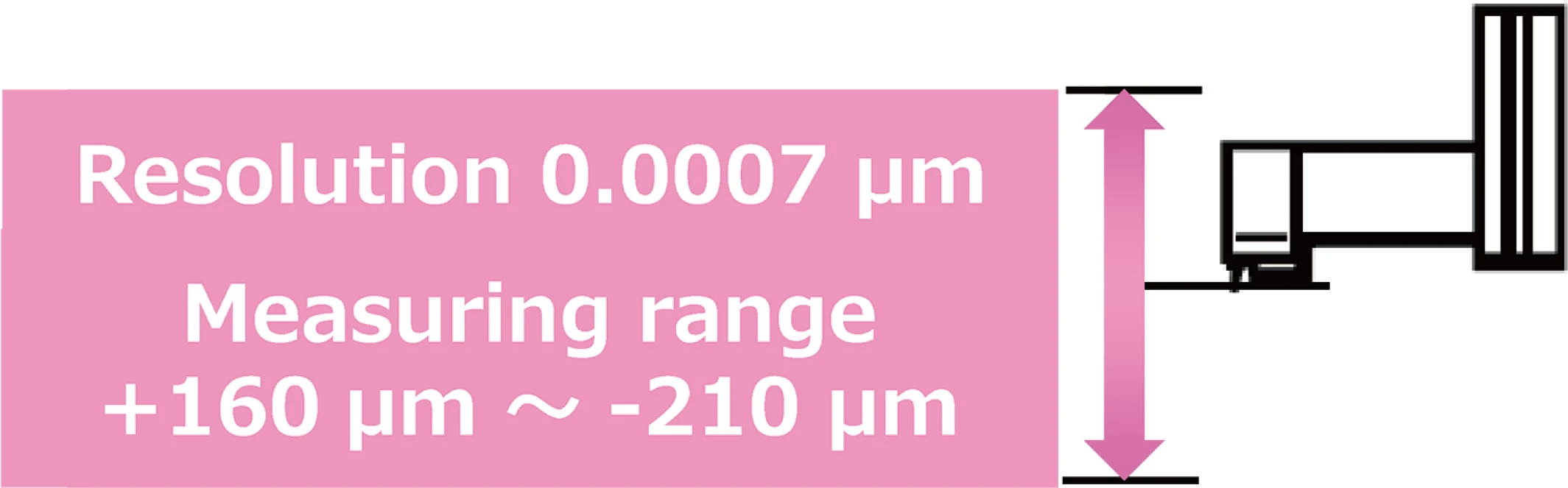

The instrument has the Z direction measuring range of 370 μm, which is the widest in class, and achieved a resolution as high as 0.0007 μm over the entire range.

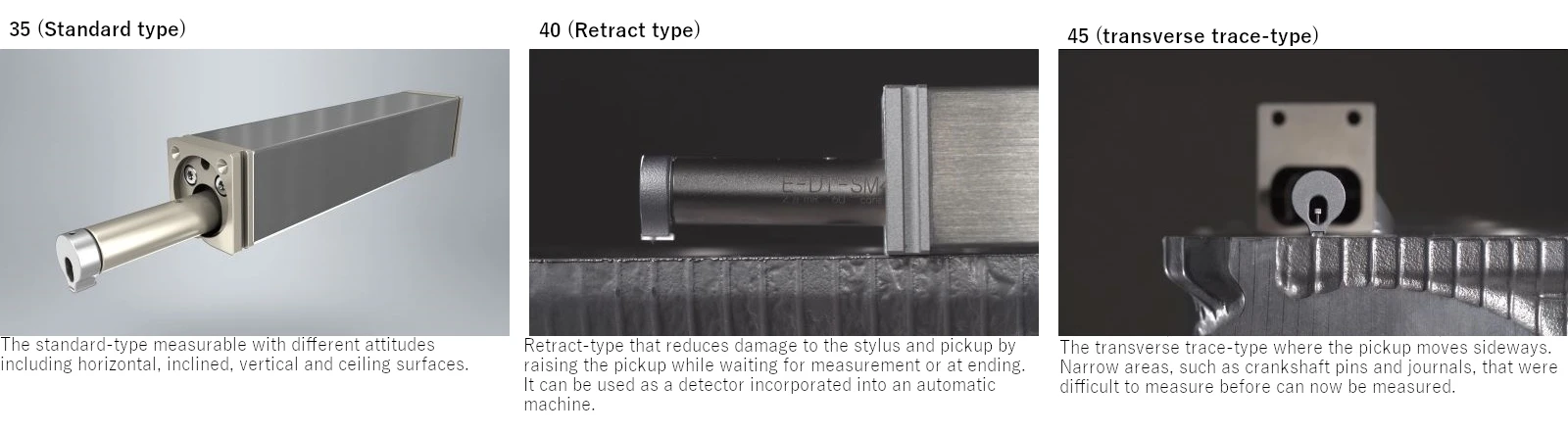

Handy drive unit selectable from 3 types according to workpiece and measurement location

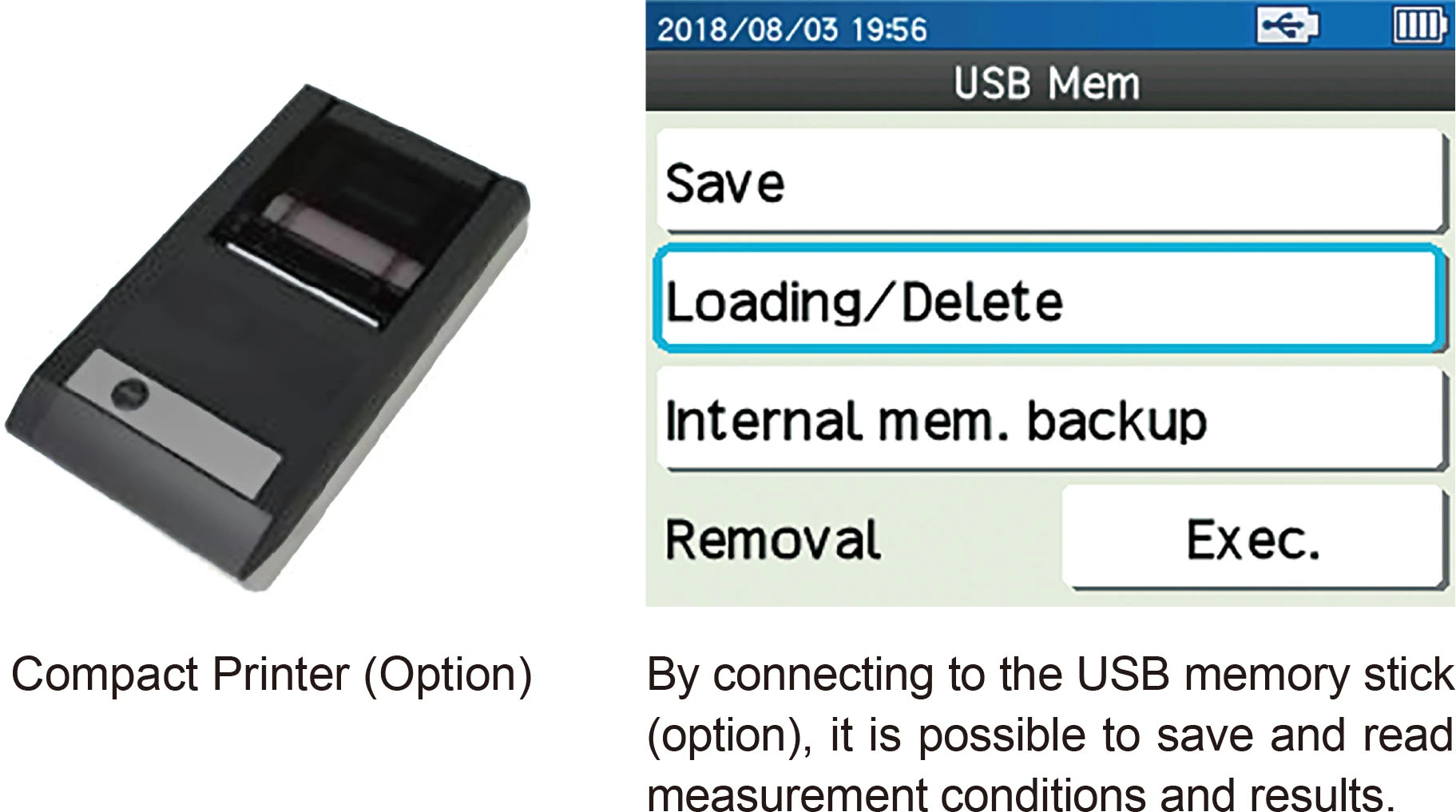

Connectable to small printer, USB memory stick and PC with built-in USB connector
With the USB connector, it is possible to generate measurement results from the optional compact printer, save measurement conditions and results in USB memory sticks and recharge the instrument from the USB port of a PC or with a USB battery.
Superior Operability

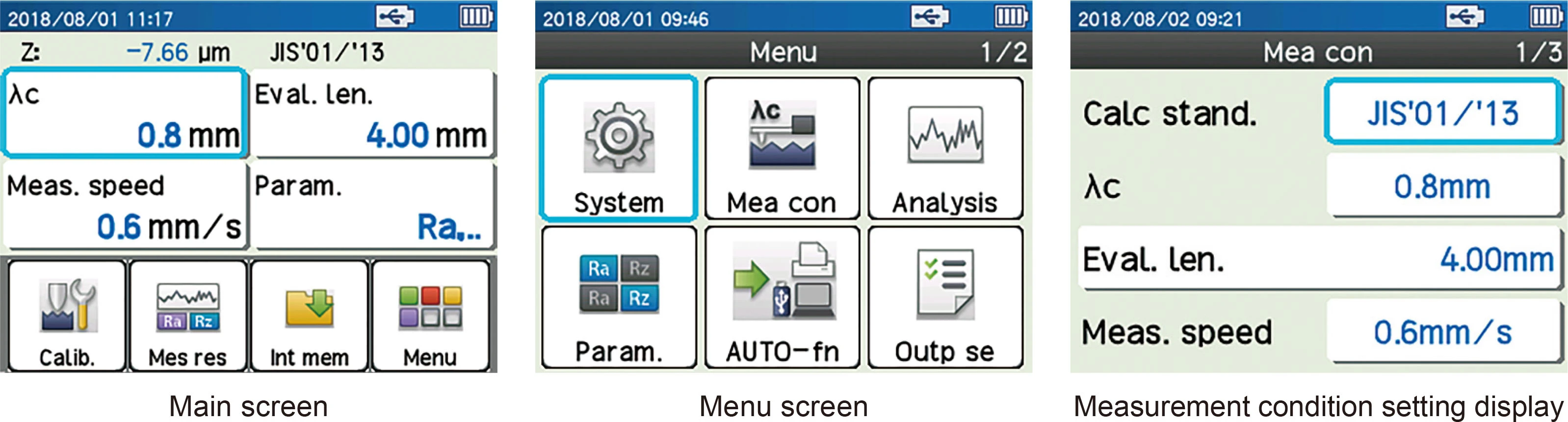

2.4 inch color LCD has significantly improved the visibility.
Moreover, 6 buttons and newly developed UI have achieved simple and intuitive operations.

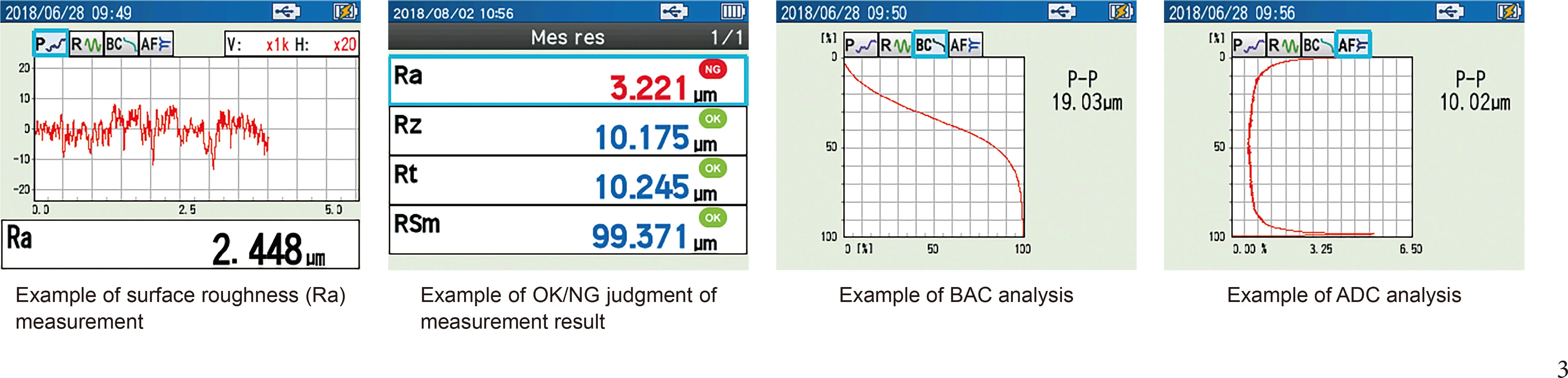

Multiple analysis functions
Graphic representation of measurement results enables their on-site verification with parameter and waveform. Moreover, despite being a portable instrument, it is capable of a variety of analyses including analyses of BAC, ADC, peak count and motifs. By setting the conditions in advance, OK/NG judgment can be performed automatically
