SURFCOM TOUCH 35/40/45/50
Easy and Simple operation
Global Standardized portable type instrument for easy operation
Variation
Features

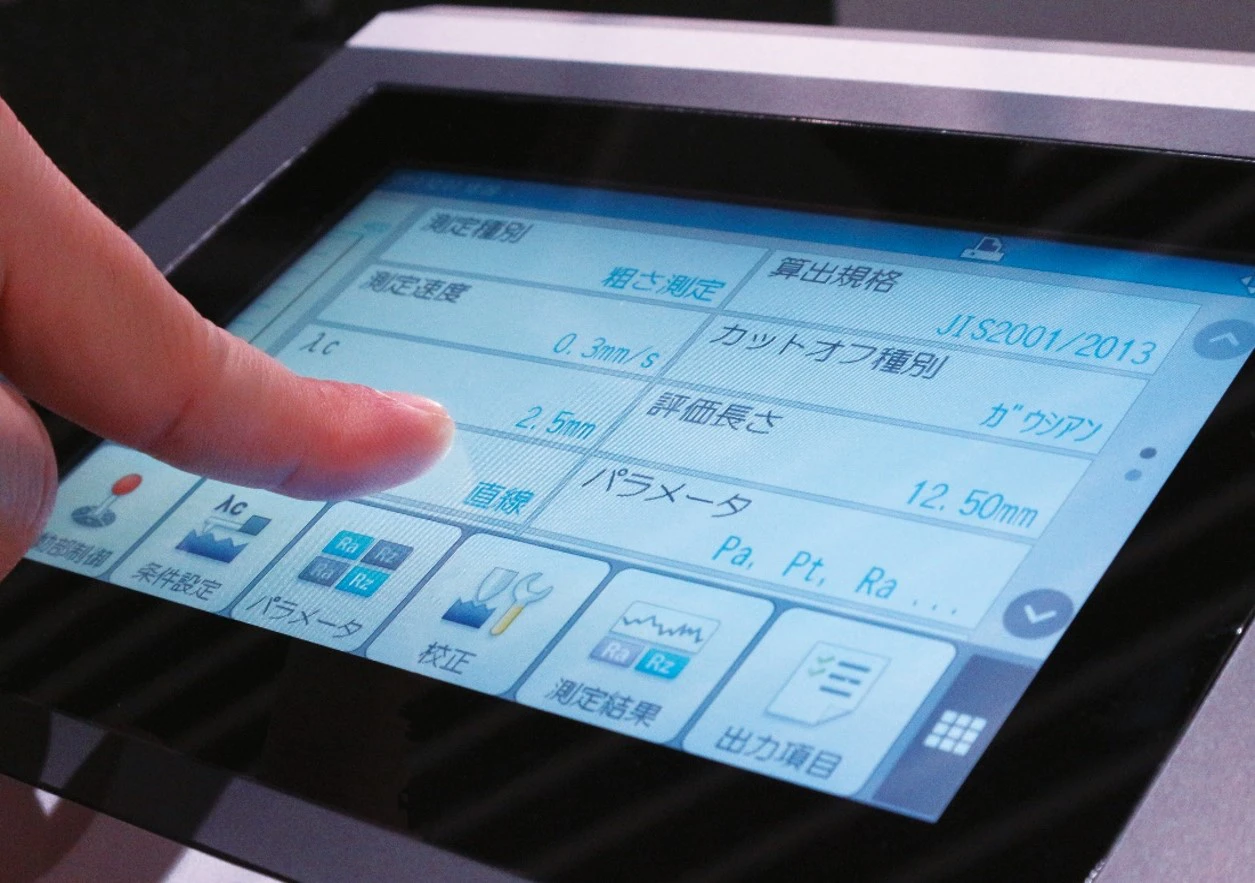

Intuitive and easy-to-use screen for condition setting, calibration, measurement and analysis
An amplifier with a 7-inch wide touch panel and easy-to-use new interface provides higher operability. Easy-to-use operation eliminates the need of instructions.
Multi-language support available worldwide
20 Asian and European languages including Japanese, English and German are provided as standard. Language can be easily changed with one touch.
High-level compact-type model in the SURFCOM TOUCH series with high resolution and straightness

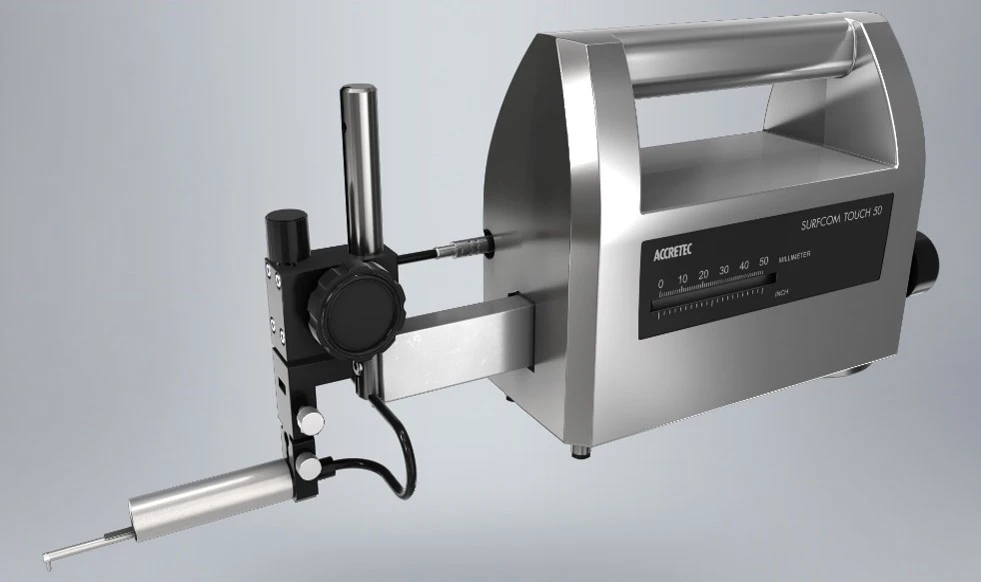

SURFCOM TOUCH 50
A compact high performing tracing driver
The portable compact size tracing driver for easy install-ment has an X-axis measurement range of 50 mm, a straightness accuracy of 0.3 μm/50 mm, and a detector vertical movement volume of 50 mm. Safe positioning at a constant speed is possible by operating
the tracing driver in the X direction from the screen of the amplifier.

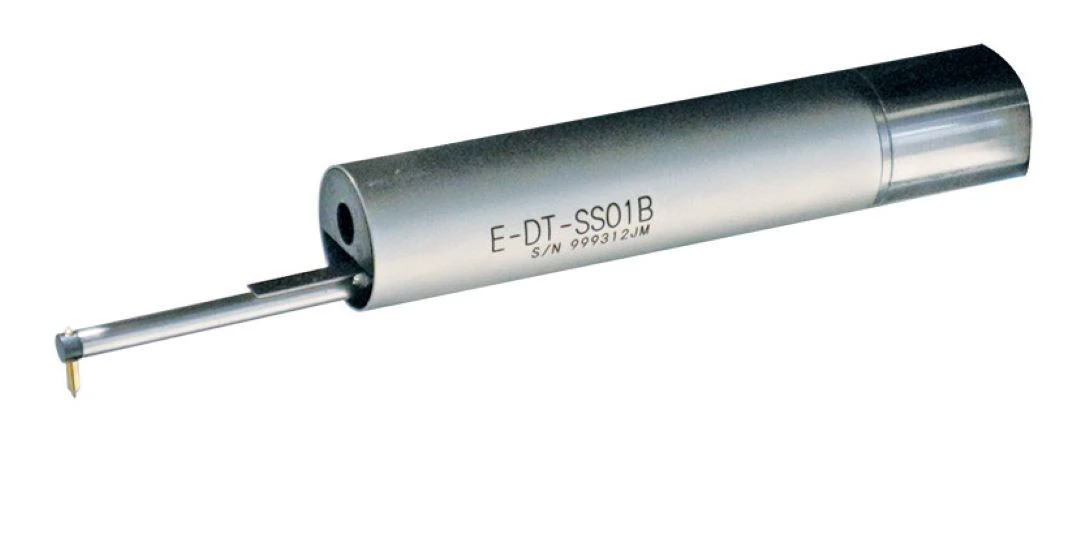

Extended Z-axis measurement range from 800 to 1,000 μm (25% increase)
The high performing pickup with a measurement range of 1,000 μm and a z-axis minimum resolution of 0,0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range. In addition to flat surface, the roughness or waviness on undulating surface such as stepped or round surface can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily.

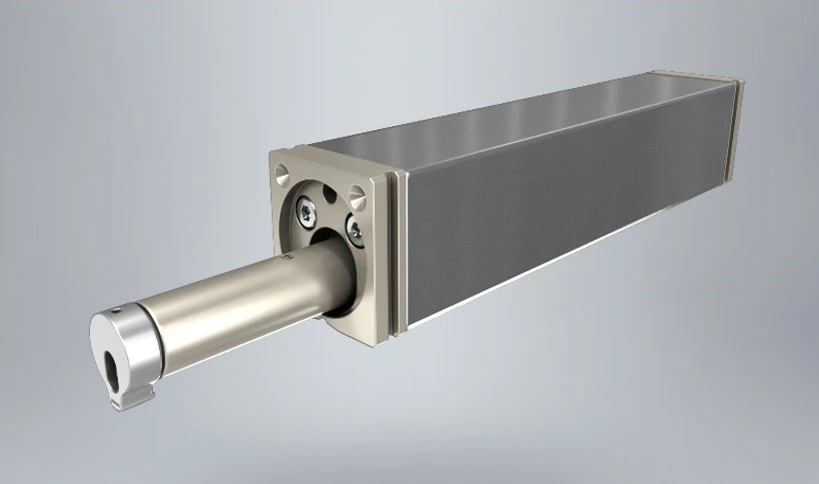

Palm-sized tracing drivers selectable for workpieces and measurement areas
SURFCOM TOUCH 35/40/45

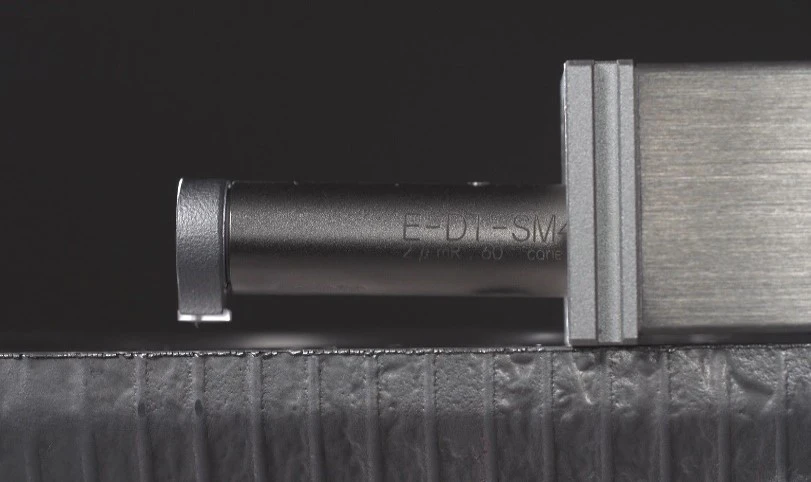

In addition to horizontal surface, measurement on vertical surface with the driver and in narrow areas with transverse trace can be performed. Skid-measurement-type for measurement with different attitudes.
35(Standard type)
The standard-type with different attitudes to measure horizontal, inclined, vertical and ceiling surfaces
40(Retraction type)
Retract-type that reduces damage to the stylus and pickup by raising the pickup while waiting for measurement or at ending. It can be used as a detector incorporated into an automatic machine

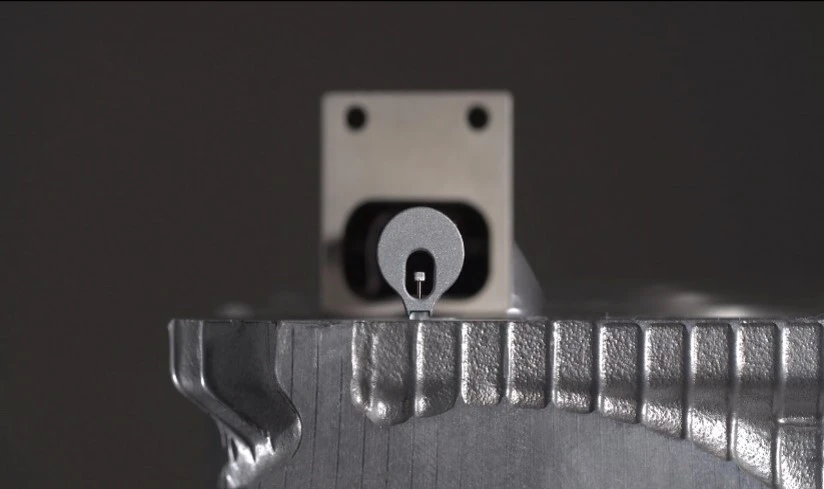

45(Horizontal tracing type)
The transverse trace-type where the pickup moves sideways. Narrow areas, such as crankshaft pins and journals, that were difficult to measure before can now be measured
