SURFCOM TOUCH 550
High-end model in the SURFCOM TOUCH series with an electric column offering high accuracy and size variation
Features

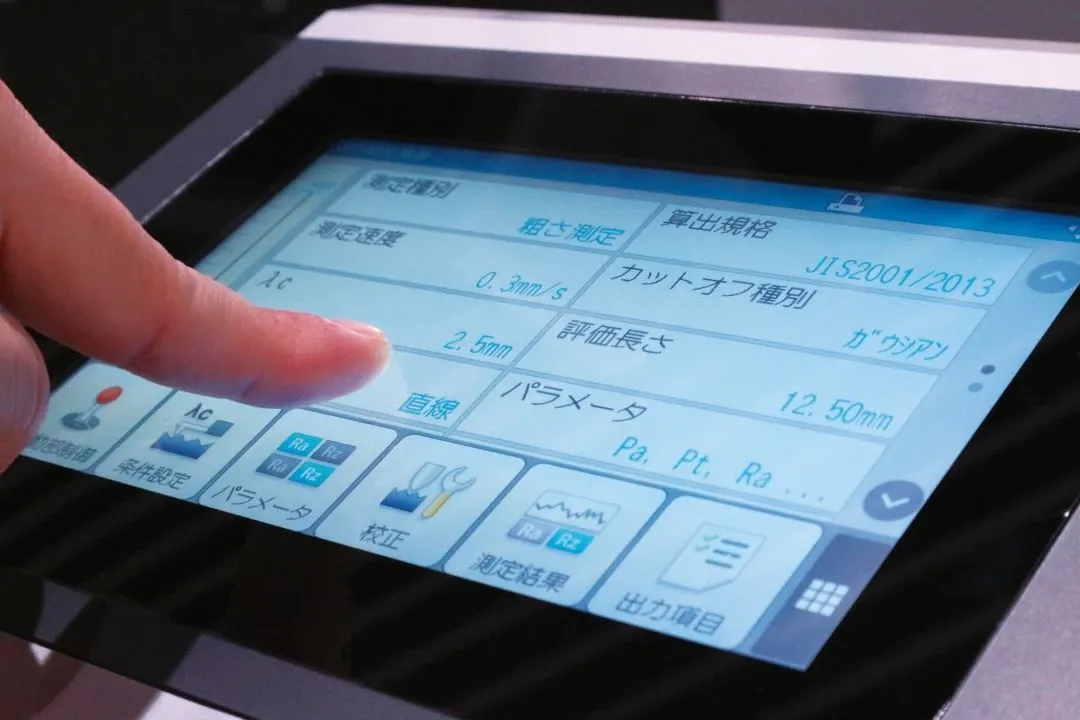

Intuitive and easy-to-use screen for condition setting, calibration, measurement and analysis
An amplifier with a 7-inch wide touch panel and easy-to-use new interface provides higher operability. Easy-to-use operation eliminates the need of instructions.
Multi-language support available worldwide
20 Asian and European languages including Japanese, English and German are provided as standard. Language can be easily changed with one touch.
Extended Z-axis measurement range from 800 to 1,000 μm (25% increase)

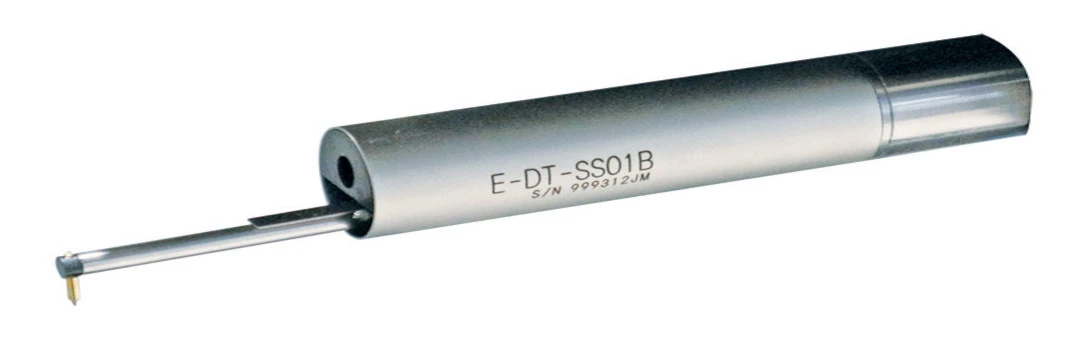

The high performing pickup with a measurement range of 1,000 μm and a z-axis minimum resolution of 0,0001 μm allows for wide-range and high resolution skidless measurement. No need to consider measurement range. In addition to flat surface, the roughness or waviness on undulating surface such as stepped or round surface can be evaluated with one trace. Leveling and zeroing before measurement can also be performed easily.

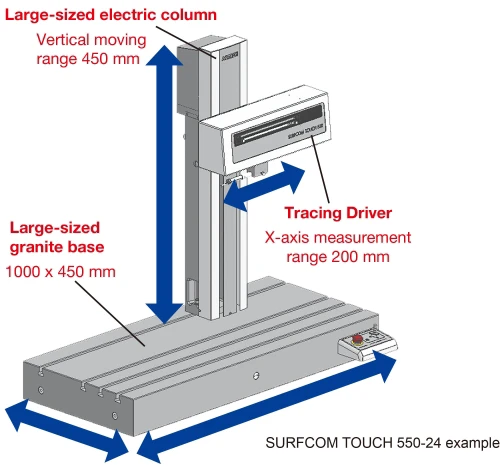

Size variations for various types of workpieces
SURFCOM TOUCH 550 allows users to select a combination of the size of the granite base, the height and type of the column and the drive range in the X axis direction.This meets diverse customer needs such as "we want to reduce the installation space", "we want to reduce initial costs" , "we want to measure high workpieces" and "we want to measure large flat workpieces".
