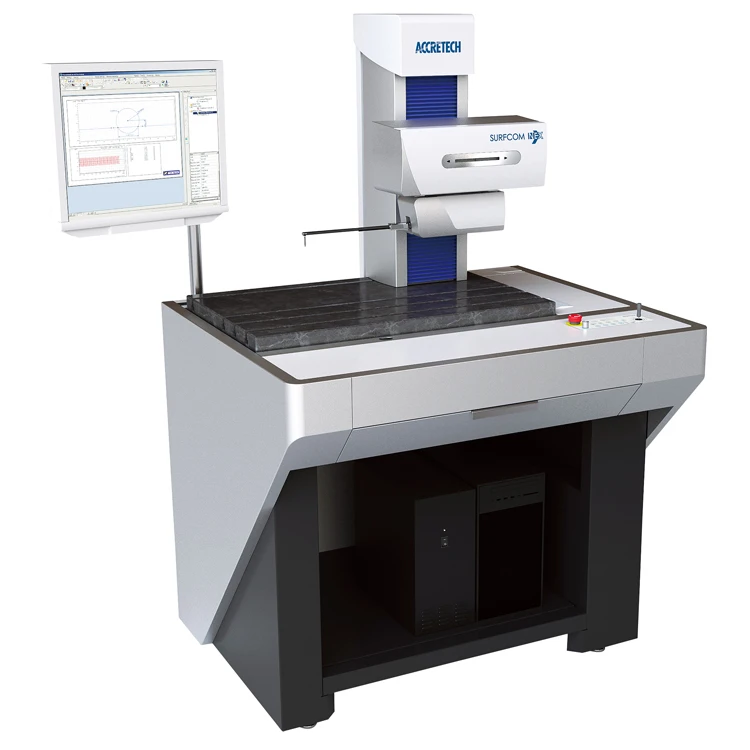

SURFCOM NEX 031/041 DX2/SD2
Measuring a wide variety of workpieces under varying temperature environments in a short period of time
"Complete Measurement of Surface Texture and Contour in One Equipment"
Variation
Features
When you need surface texture, contour, or you may require both
The ability to freely combine detectors to suit any workpiece

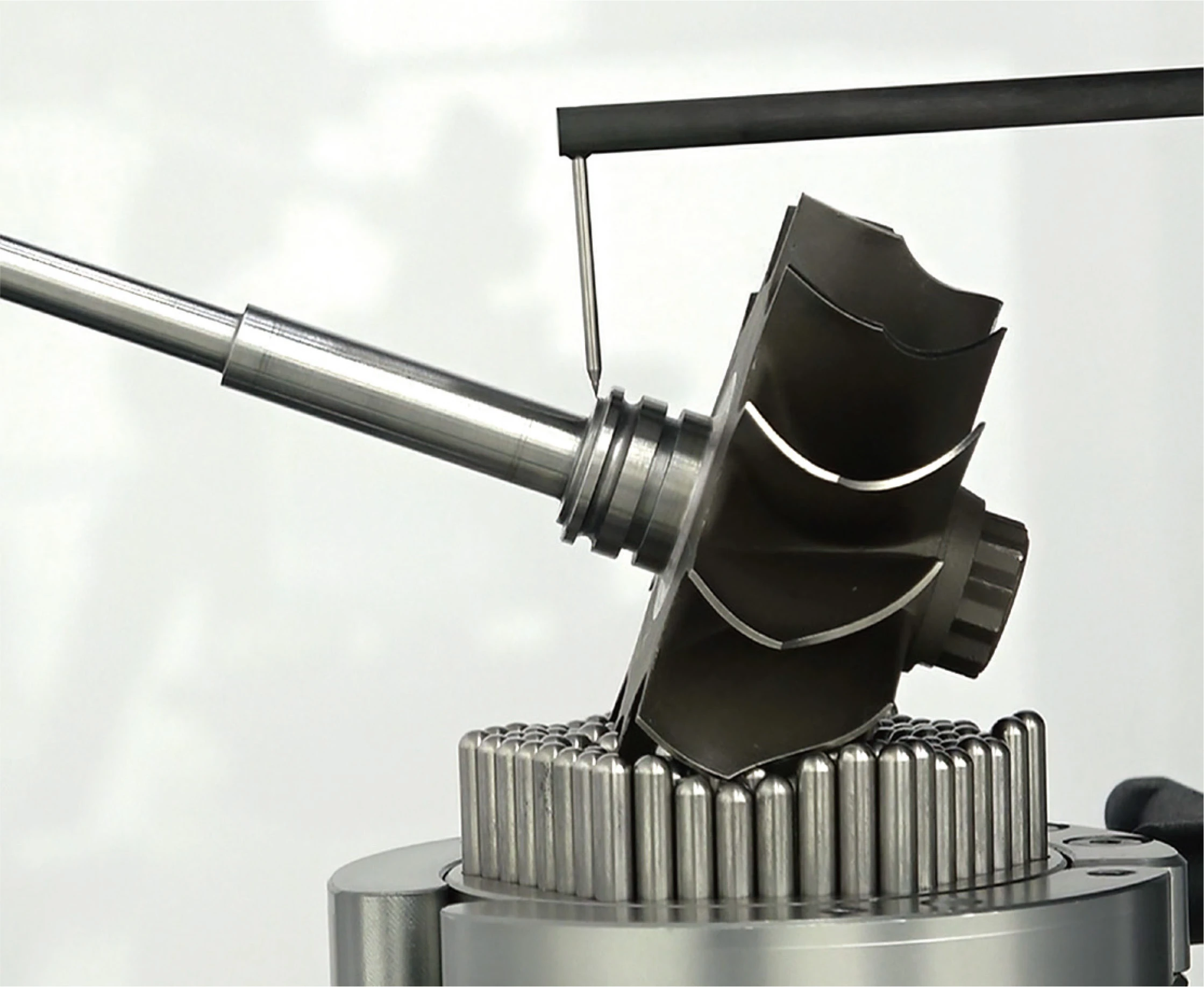

Equipped with newly-developed, wide-range hybrid detectors covering more than twice the range of conventional machines, this machine efficiently evaluates the surface texture and contour of inclined surfaces, undulating shapes, and curved surfaces in one trace(NEX 200). In addition, special-purpose detectors for surface texture and contour measurement can be freely switched and added at a later stage depending on the workpiece. As long as you have one SURFCOM NEX, you won’t need another surface texture or contour measuring equipment.

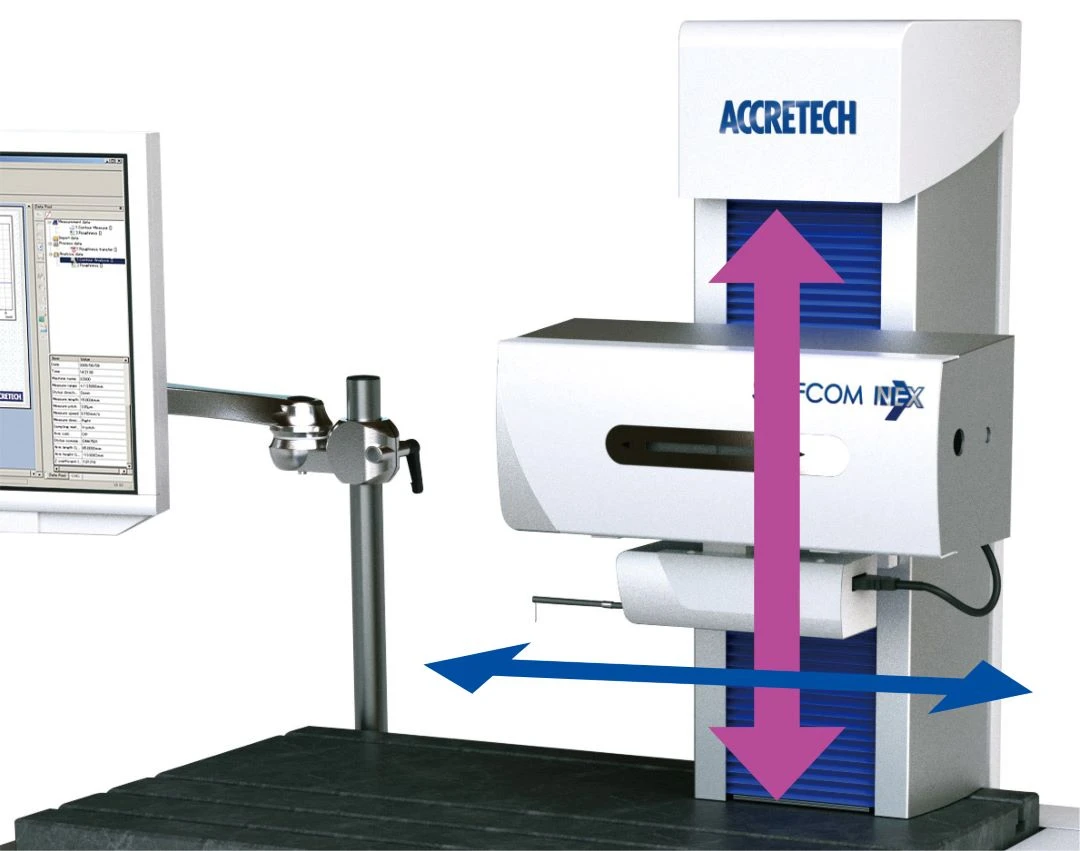

Preparation and measurement in a short time with the fastest drive in the class
Significantly improved drive speed reduces the time for approaching workpieces in manual mode, creating CNC programs and drive during CNC measurement. This improves efficiency throughout the inspection process, from preparation to measurement.

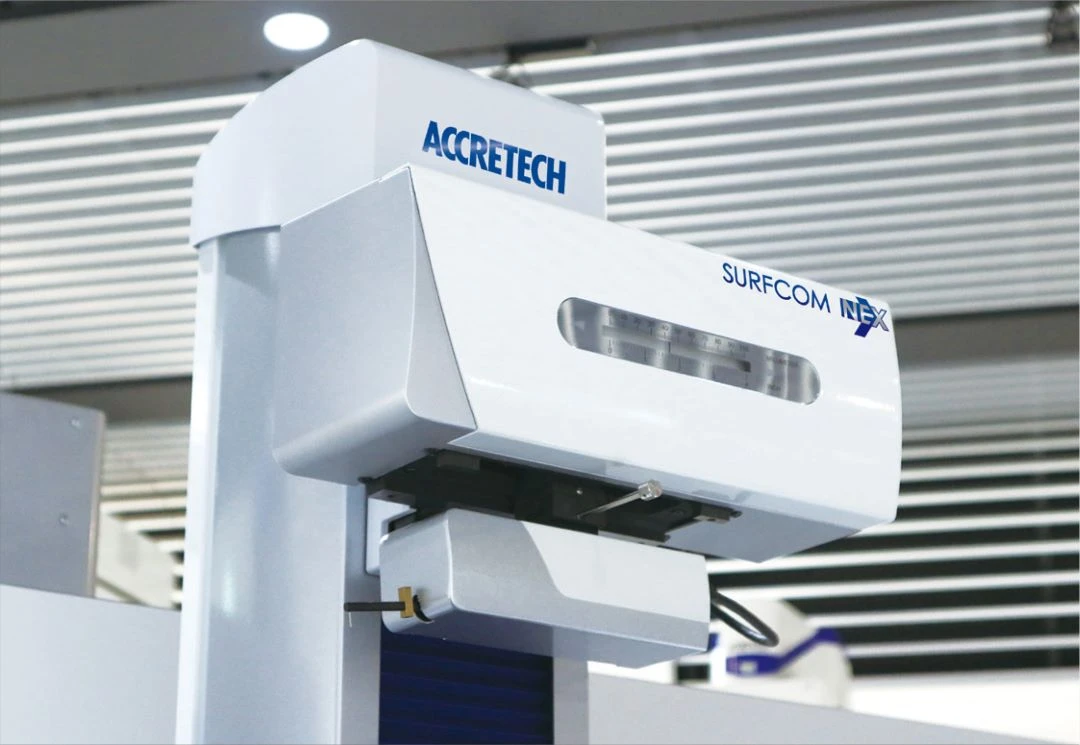

The world's only linear motor drive machine that can measure ultralow vibration
and operate at 20±5 degrees Celsius.
SURFCOM NEX inherits the linear motor drive unit, a patented technology of ACCRETECH, from a conventional SURFCOM NEX. An ultra-low vibration drive mechanism reduces noise caused by vibration and provides high-accuracy measurement results. Moreover, by offsetting the impact of temperature change on the scale in real time, accuracy can be assured over a wide temperature range of 20±5 degrees Celsius. Reliable measurement results are obtainable even in environments where temperature control is difficult.
Detectors of Surface Texture and Contour Combined Measuring Instrument

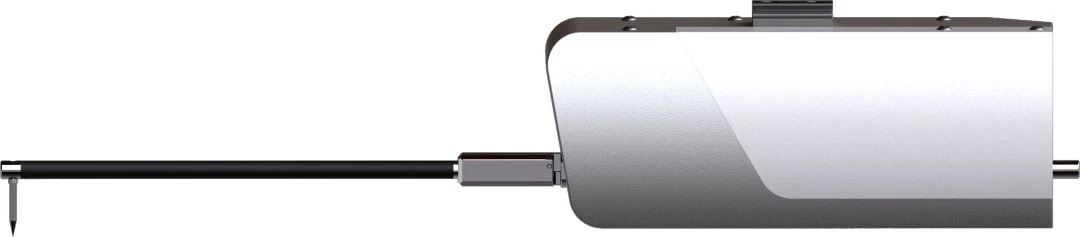

General-purpose detector for contour measurement
Detector realizing highest-in-class accuracy
The measuring force should be adjusted manually with weights. A newly-developed high resolution scale allows the highest accuracy in this class.
High-accuracy detector for contour measurement
High-accuracy detector with built-in auto balance
(automatic measuring force adjustment) function
The measuring force can be finely specified and controlled on PC software in 2 mN increments. This prevents trace scratches or a broken chip of a stylus tip when it hits a step. Various special arms/styluses are supported to ensure an optimum measuring force.
*An auxiliary weight may be needed depending on the combination of arms and styluses.

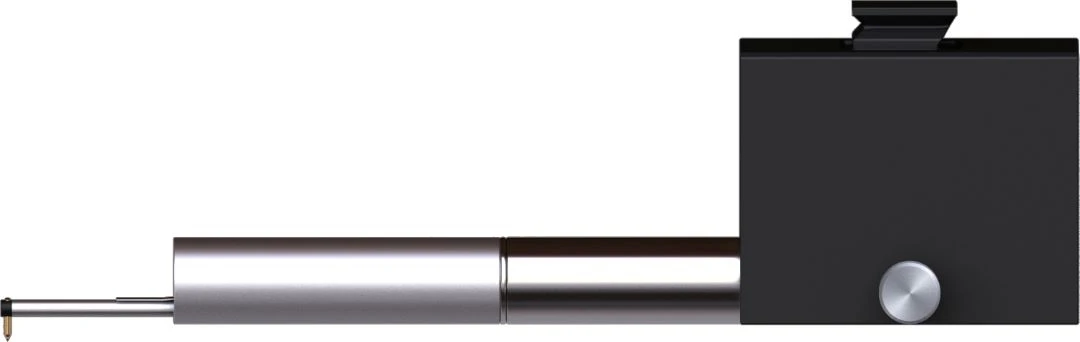

Pickup for roughness measurement
Detector (pickup) designated for surface roughness measurement.By combining with linear x drive, it provides excellent reliability.
This detector offers a measurement range of 1000 μm in the Z direction, which is 25% wider compared with 800 μm of common detectors. It has an excellent wide stroke as a roughness measuring instruments. The wide-range measurements significantly reduces the tilt angle of the measurement surface and detailed alignment at the R surface measurements
(such as shafts, bearing workpieces).
